Lotus Dev 1

ABout

Lotus Dev 1 (LD1) is the first liquid engine developed by the Boston University Rocket Propulsion Group. The design features a copper chamber and injector with an aluminum jacket and saddle.  LD1 produced valuable data for the Lotus liquid engine development program, and has paved the way for Lotus Dev 2 and a Starscraper sub-orbital space flight.

Lotus Media Gallery HERE

Lotus undergoing initial cold flow testing

Lotus undergoing initial cold flow testing

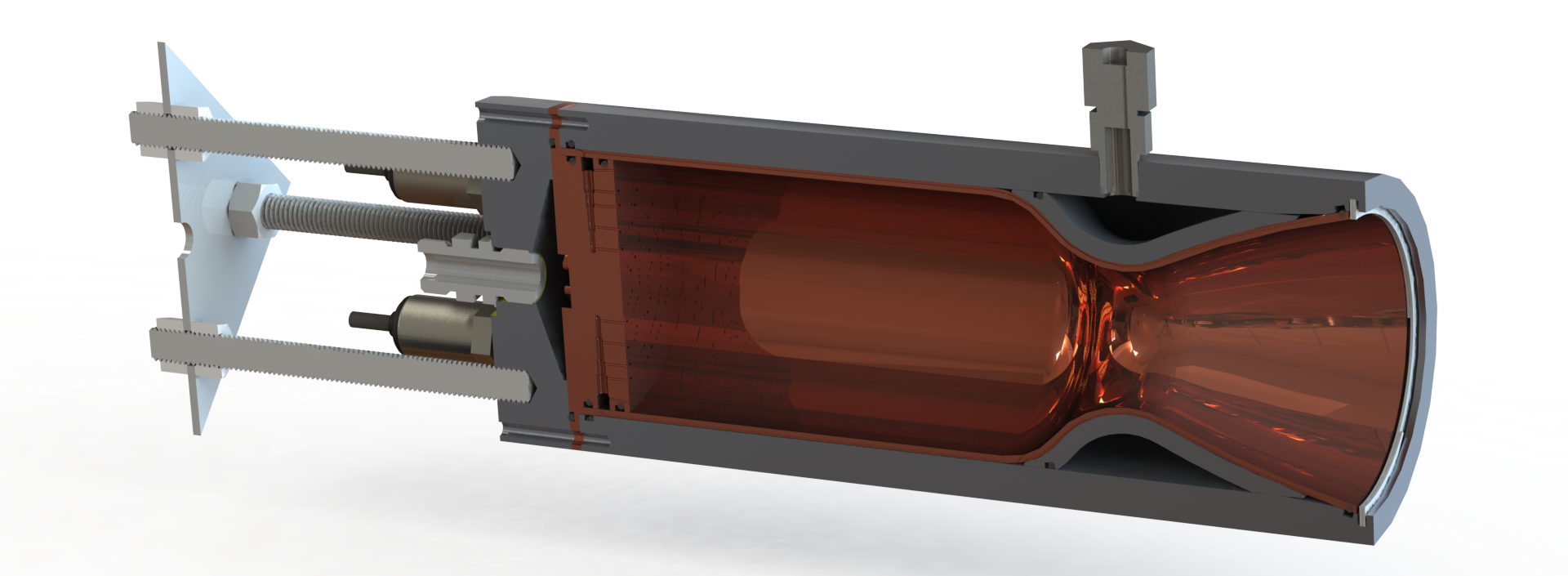

Cutaway of Lotus Dev configuration

Cutaway of Lotus Dev configuration



Technical Overview

Fuel: Liquid Isopropyl Alcohol (C3H8O)
Oxidizer: Liquid Nitrous Oxide (N2O)
Isp Sea-Level: 227 s
Thrust Sea-Level: 1,500 lbf
Throttle Type: Blowdown
Burn Time:  40 s
Thrust Vector Control: Gimbal
